API 6A Gate Valves - E50A

It is in conformity with API 6A standarts.This type is designed for wellhead and pipeline needs. It has conduit features. It can be used with hydraulic or electric actuators control and self-acting.

Vastas 6A valves are suited for use in any application specified in API 6A and NACE MR0175, MR0103, including Wellheads & as Christmas Tree equipments.

Application Area

Pipeline - Operation Solutions - Vastas

Pipeline

Water Works - Operation Solutions - Vastas

Water Works

Well Head - Operation Solutions - Vastas

Well Head

Functions

ESDV - LBV - SOV - BDV - SDV - MOV - MAN - Process Valve Systems

Download Product Catalogue

Vastas Figure E50A

Type
Expanding or Slab Gate Valve

NPS
2"-13"

DN
50-350

Class
3000-5000-10000#

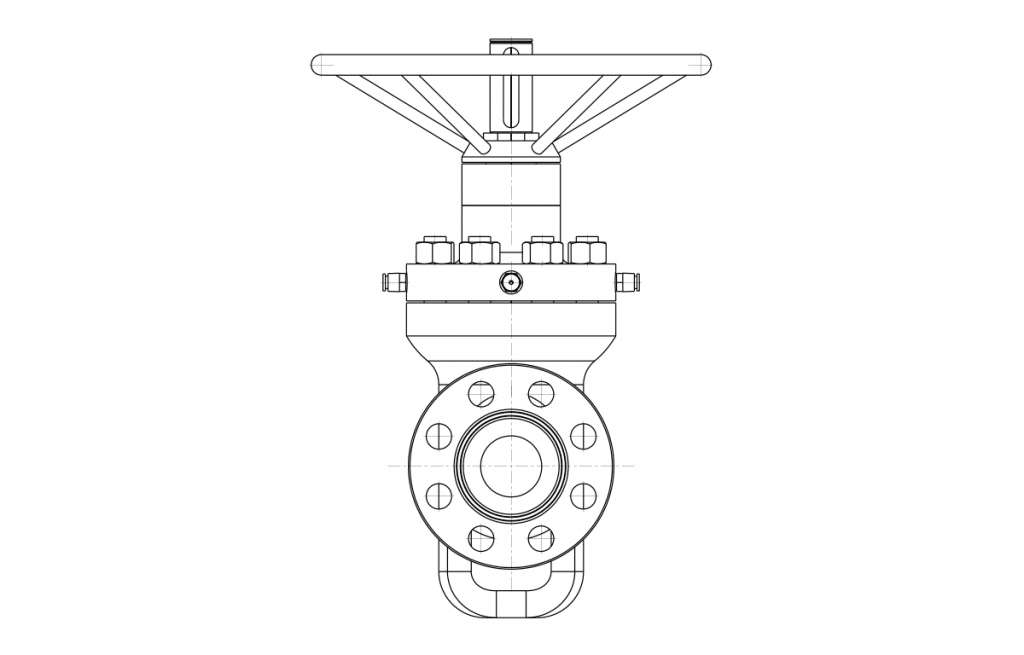

Gate Valves - E50A Technical Drawing - Vastas

Features

Rising Stem (RS)
Double Block & Bleed (DBB)
Anti Static Device (ASD)
Fire Safe Design (FSD)
Bolted Bonnet (BB)
Injection Sealant (optional)

Standards

» Design API 6A
» NACE MR0175, MR0103
» Design API 6A and ISO 10497 standards.

Operators

» Manual Operated
» Pneumatic Actuators
» Hydraulic Actuators
» Motor Operated (Rotork, Auma or others)
