Cast Steel Wedge Gate Valve - E500

Wedge Gate Valves are commonly used as on-off and isolation valves in oil, gas, water, sea water and steam lines. They are used fully open or fully close and not suitable for throttling.

Vastas Wedge Gate Valves are API 600 licensed and Safety Integrity Level (SIL) certified. They are used as pipeline valves, shut-off valves, isolation valves, drain valves, vent valves and service valves.

Wedge Gate Valves are produced with steel body and stainless trim (API Trim No 8 as standard), ends being flanged to ASME B16.5&B16.47 and FTF-Dimension complying with ASME B16.10 standard.

Customization

Vastas is a designer, manufacturer and service provider. This catalogue shows the standard products but with Vastas capabilities it is possible to customize or require tailor-made.

• Wedge Gate Valves for high pressure and/or high temperature services. It is important to make the material selection according to the fluid corrosion.

• Big size and/or different/special material Wedge Gate Valves.

• Special material according to NACE corrosion standards and/or temperature class.

Application Areas

crude-oil-storage
Crude Oil Storage
Crude-oil-terminal
Crude Oil Terminal
crude-gas-pipeline
Crude Oil Pipeline
natural-gas-pipeline
Natural Gas Pipeline
Fuel-terminal
Fuel Pipeline
fuel-terminal
Fuel Storage
tank-storage
Tank Storage
LNG-storage
LNG Terminal
petrochemical-plant
Petrochemical Plant
refinery
Refinery
power-plant-application
Power Plant
RMS
RMS
water
Water Works
Hydrogen, Ammonia,
Hydrogen

Functions

ESDV - SOV - BDV - SDV - MOV - MAN - Process Valve Systems

Download Product Catalogue

Vastas Figure
E500

Type
Cast Steel Wedge Gate Valve

NPS
2-72

DN
50-1800

Class
150-2500

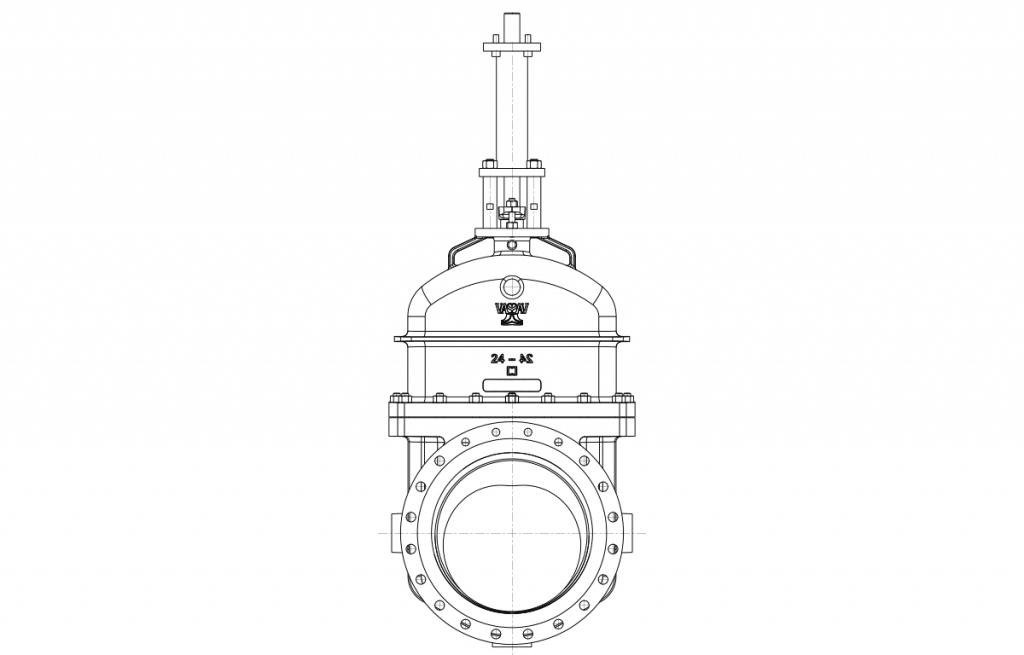

Gate Valves - E500 Technical Drawing - Vastas

Features

Bolted Bonnet
Flexible Wedge
Outside Screwed & Yoke (OSY) Rising Stem (RS)
Fire Safe Design (FSD)
Above Ground (AG) & Underground (UG - only full confined packing)
Full Bore (FB)
Anti Static Device (ASD)

Standards

» Design API 600, ISO 10434, ASME B16.34
» Face to Face size ASME B16.10
» End Type ASME B16.5 & B16.47 RF/RIJ, (Series A, Optional Series B) ISO 7005 & ASME B16.25 BW
» NACE MR0175, MR0103 (optional)
» Fire safe valve design; according to API 6FA and ISO 10497 standards.
» Fugitive Emission Test Certificate as per ISO15848.
» Test Standard API 598

Operators

» Manual Operated (Handwheel or Gearbox)
» Motor Operated (Rotork, Auma or others)
» Pneumatic Actuators
» Hydraulic Actuators
