Goggle Valve - E804

These type of valves are used for the isolation of downstream flow. They are typically used in 12’’ (DN300) to 120’’ (DN3000) diameter lines. They provide %100 ‘man-safe’ shut-off.

Goggle valves are frequently found in the Petrochemical, Steel and Oil industries. Commonly used applications are Furnace Gas and Coke Gas lines.

Application Area

Functions

-

Download Product Catalogue

Vastas Figure E804

Type
Goggle Valve

NPS
12"-120"

DN
300-3000

Class
50 mbar-1500 mbar

Standards

Manufacturer Standard

Operators

Gearbox (G) (Mastergear, Rotork)
Electric Actuator (Rotork, Auma)
Hydraulic Actuator (Vastas)

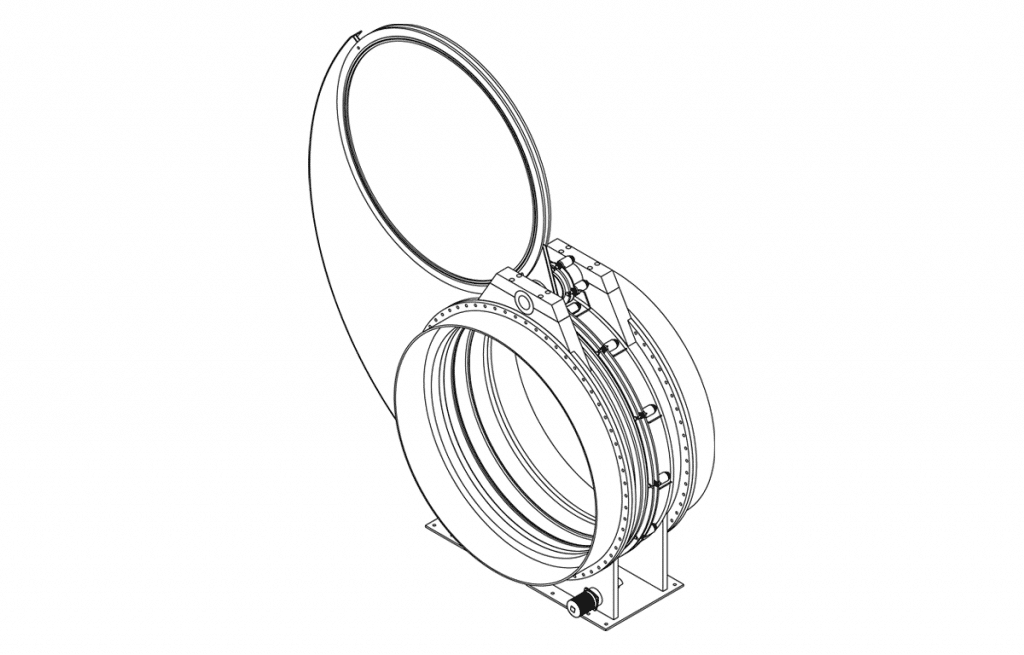

Tailor Made Valves - E804 Technical Drawing - Vastas
